POE switch 16 port 10 / 100Mbps RJ45 POE port and 2 port Gigabit SFP Switch 48V POE IP cameras and wireless AP

Ask Lasest Price
Brand Name :	TuoTaiDa
Model Number :	TTD-16POE-F
Price :	US $156.77
Payment Terms :	T/T
Supply Ability :	5000 Piece sets per month
Delivery Time :	30 days base on the quantity

Add to Cart

Product Details
Company Profile

POE switch 16 port 10 / 100Mbps RJ45 POE port and 2 port Gigabit SFP Switch 48V POE IP cameras and wireless AP

Item specifics

Brand Name:TuoTaiDa
Switch Capacity:7.2G
Package:Yes
Ports:16
Number of Interfaces:18
Switch Type:Gigabit Switch
Model Number:TTD-16POE-F
Transmission Rate:10/100/1000Mbps
VLAN:NO
Function:POE
Communication Mode:Full-Duplex & Half-Duplex
Products Status:Stock

Product Description

product description

It provides 16 10 / 100M adaptive RJ45 POE power supply ports and 2 Gigabit SFP ports Each port supports MDI / MDIX auto-reverse function and wire-speed forwarding. POE function, support IEEE802.3af standard, can be used as Ethernet-powered equipment, can automatically detect identification in line with IEEE 802.3af standard powered devices, and through the network cable for its power supply.

Port performance

* Automatic detection and identification in line with IEEE 802.3af / at standard PD equipment and its power supply

* POE ports: 1-16 ports support IEEE 802.3af (15.4W) or at (30W) network power, but the total power can not exceed 288W

* POE wire core 1/2 + or 4/5 +, 3/6 - or 7/8 -

* POE total power: 288W

Ports	100M POE	16 Ports
Ports	Gigabit SFP	2 Ports
	Storage Forwarding	support
Product performance	Backplane bandwidth	7.2G
	MAC address table	4K
POE standard		Standard IEEE802.3af / at-port maximum power of 30W, all single port total power less than or equal to the rated power of the power adapter
POE standard
Input Power		DC48V 6A AC input 110 ~ 220V 50 / 60HZ
Supported standards and protocols		IEEE 802.3 Ethernet MAC protocol
		IEEE 802.3i 10BASE-T Ethernet
		IEEE 802.3u 100BASE-TX Fast Ethernet
		IEEE 802.3ab 1000BASE-T Gigabit Ethernet
		IEEE 802.3af via the Ethernet cable to the Ethernet device or devices to achieve power
The default system mode		Common switch
Data transfer rate		Half-duplex Ethernet 10Mbps, 20Mbps full duplex
		Fast Ethernet 100Mbps half duplex, 200Mbps full duplex
		Gigabit Ethernet 2000Mbps full duplex
Network Media		10Base-T: 2 of three categories (Cat3) or higher UTP / STP (≤100m)
		100Base-TX: 2-pair Category 5 (Cat5) or above UTP / STP (≤100m)
		1000BASE-TX: 6 category and above and unshielded twisted pair (≤150 m)

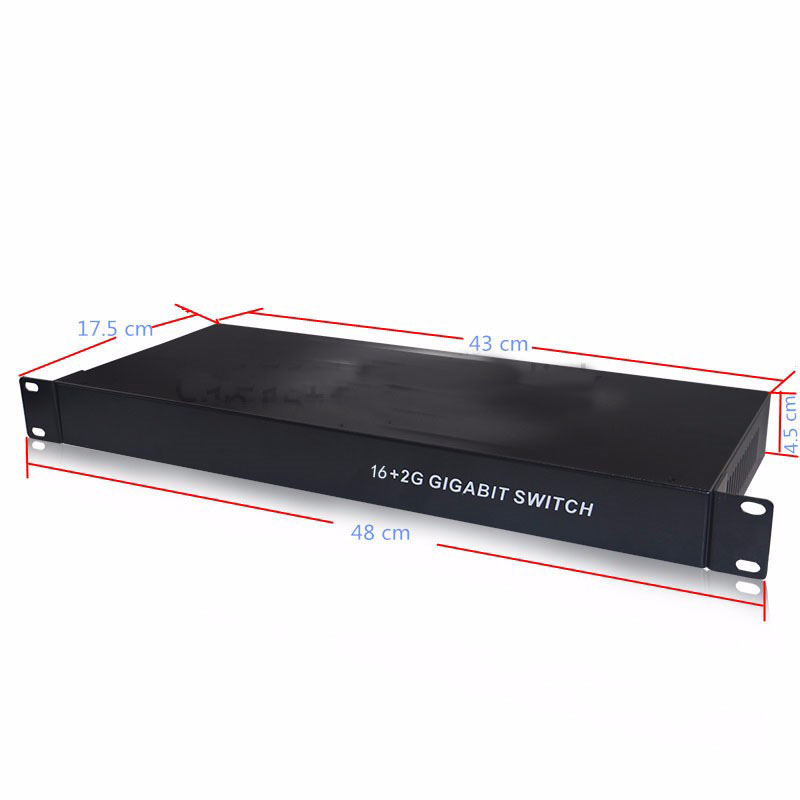

Physical Specifications		Size: 480mm * 175mm * 45mm (L * W * H)
		Package Size: 520mm * 270mm * 100mm (L * W * H)
		3kg
Environment		Operating temperature: zero to forty degrees Celsius
		Storage temperature: minus forty to seventy degrees above zero
		Humidity: 10% to 90% RH non-condensing
		Storage humidity: 5% to 90% RH non-condensing

Packaging Details

Unit Type: piece
Package Weight: 3.0kg (6.61lb.)
Package Size: 52cm x 27cm x 10cm (20.47in x 10.63in x 3.94in)

POE switch 16 port 10 / 100Mbps RJ45 POE port and 2 port Gigabit SFP Switch 48V POE IP cameras and wireless AP
